Bộ ghi dữ liệu, kết nối với máy tính
Giá:
Liên hệ
Xuất xứ:
Lượt xem:
36775

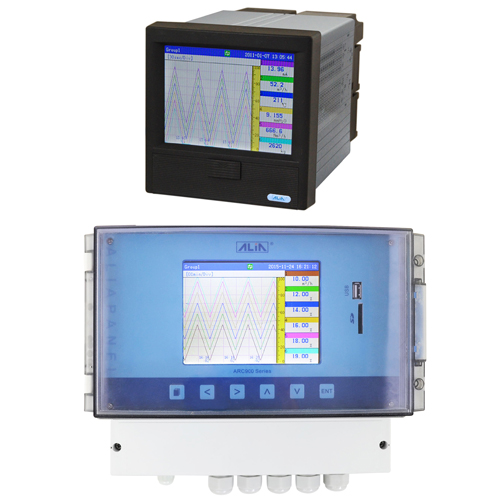

Bộ ghi dữ liệu, kết nối với máy tính. ARC90NT Series Paperless Recorder features the most advanced technology. It can be applied across a broad scope of industrial applications. ARC900 is the product which with multi-channels, complete functions, easy operation, high accuracy, low power but high performance. And the series overcome the old-fashioned paperless recorder, which has less channels, multiple installation and space-consuming problem.

FEATURES

Panel type DIN Size (144mm*144mm), 320*240 Pixels, TFT truecolor (LCD)
128MB memory installed inside, applied to long terms data record
Common input signal, mA, Include VDC, T/C, RTD, Hz..etc
High Accuracy +/-0.15% of Reading
Maximum 12 points Relay, 4 point 4-20mA output and 24VDC output
16 channels maximum input
24VDC Aux. power supply available for 2 wires system
Display/Record single point, Multi-point, Trend, Totalizer, Bargraph
The recorded data could be stored in USB memory & SD memory card and transferred to computer for soft analysis
Outdoor type (IP65), wall-mount, 280mm (W) * 242mm (H) *157mm (D)

SPECIFICATION

Number of Inputs:	Display:
1-16 Channels	5.6" color-screen LCD
Input:	Trend & Bargraph
T/C (K, S, B, E, J, N, T, R,N, etc.)	Vertical / Horizontal
RTD, CU50, CU53, BA1, BA2	Digital
DCA (4-20 mA, 0-10 mA, 0-20 mA)	4-1/2 digits programmable
DCV (0-5V, 1-5V ,0-10V, 20mV, 100mV)	Engineer unit
Frequency (1Hz ~ 5KHz)	66 different ngineering units
Resistance (0-175 , 0-400 )	Parameter Protection
Accuracy:	Password entry (6 Digits)
+/-0.15% of Span	Logging Rate:
Response Time:	1 Seconds ~ 1800 Seconds Per Data
50 ms	Recording Capability:
Alarm Type:	120 Hours (16 Points, 1 Data/Second)
High & Low alarm, Incr. & Decr. alarm	789 Years (1 Point, 1 Data/Hour)
Output:	PC Software:
4-20 mA *4 points Maximum, Load:800	Compatible with Windows 2000/XP/Vista
Relay, 3A/250V * 12 points Maximum	Display
24VDC, 65 mA *4 points Maximum	Trend, Digital, Circular, Alarm, Bargraph
Digit Input:	Totalizer
2 Points Maximum	Convert function
Storage Memory:	Saved as excel files
128 MB (on board)	Protection Class:
Recycling Mode:	NEMA 3 / IP54 (Panel Type) /
Newest Data overwrites to oldest data	IP65 (Outdoor Type)
Recording Data Shift:	Weight:
USB memory (8GB) / SD Card (8GB)	2.6 Kg maximum
Display update Rate:	Dimensions:
1 Second	144 mm (W) * 144 mm (H) * 219 mm (D)
Keypad:	280mm (W) * 242mm (H) *157mm (D)
6 Keys (Page, Left, Right, Up, Down, Enter)	Ambient Temperature:
for programming and display control	-10 to +60 ^oC
Parameter Storage:	Ambient Humidity:
Operation parameters are stored by	10% to 85%RH (at 5 to 40 ^oC)
EEPROM for more than 10 years	Power Supply:
Option:	85-260VAC, 50/60Hz
Temperature&Pressure Compensation	Vibration Test:
	10~60Hz ,10m/S² for 3 hours
	Power Consumption:
	<=20 W
	Communication:
	RS232 / RS485 (MODBUS Protocol) Ethernet Port
