Đo lưu lượng nước mắm - Tecfluid Spain
Giá:
Liên hệ
Xuất xứ:
Tây Ban Nha
Lượt xem:
72710

Đo lưu lượng nước mắm: Electromagnetic flowmeters for dedicated to the production of fish sauce widely used in Asian markets. These electromagnetic flowmeters with sanitary connection with Tri-clamp® fittings have PTFE lining and, at the customer’s request, electrodes in titanium due to the high chemical resistance of this material to liquids with a high salt content, as well as to the CIP cleaning system that must be used and that requires the application.

Đồng hồ đo lưu lượng nước mắm:

Electromagnetic flowmeters with sanitary connection with Tri-clamp® fittings have PTFE lining and, at the customer’s request, electrodes in titanium due to the high chemical resistance of this material to liquids with a high salt content, as well as to the CIP cleaning system that must be used and that requires the application.

Lining and electrodes detail

Tri-clamp® connection detail

The electromagnetic flowmeters with hygienic connection, FLOMID series, are manufactured with PTFE lining and AISI 316L end connectors for applications in food and beverages and pharmaceutical industries.

They have different end connectors for this type of applications:

FLOMID 3FX SMS1145

FLOMID 5FX Clamp

FLOMID 7FX ISO 2853

FLOMID 9FX weld on

If you want to know more about this type of flowmeters, this article that explains the differences between in-line or insertion electromagnetic flowmeters can help you.

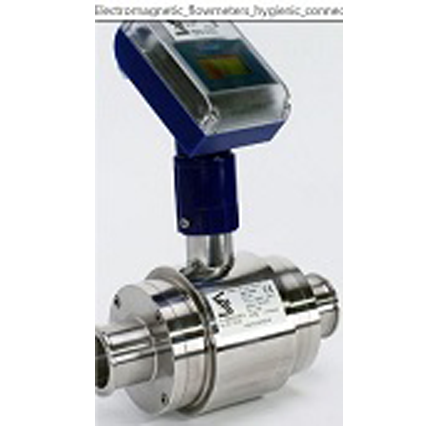

FLOMID electromagnetic flowmeter + XT5 converter
