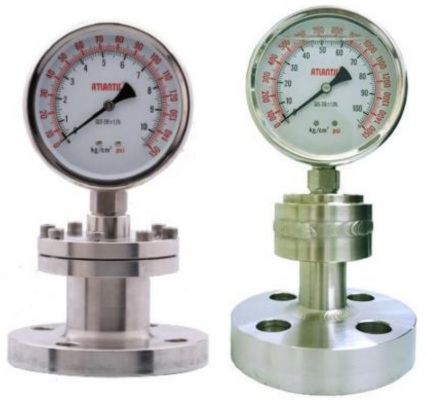

Đồng hồ áp lực màng DS200 series

 SPECIFICATIONS

Instruments:    All series pressure gauges and pressure transmitters are available

Process connection (Flange) : JIS 10K－1/2；3/4；1；1-1/4；1-1/2；2(FF standard；RF optional)
ANSI 150LB－1/2；3/4；1；1-1/4；1-1/2；2(RF standard；FF optional)
DIN EN 10Bar－15；20；25；32；40；50；80；100
GB/T 1.0Mpa－15；20；25；32；40；50；80；100
＜Other flange sizes are available upon request＞

Temperature : medium +80℃；ambient 10 to 60℃ for medium 80~400℃ or ambient below 10℃ available made-to-order
Filling Fluid:  Glycerin or silicon oil standard (depends on temperature) fluorocarbon oil available
Pressure ranges: -760mmHg/0 ~ 0/60 Kg/cm2, (bar), positive, negative or compound available (Max. pressure for teflon diaphragm is 10 kg/cm,(bar))
Accessory (option): Cooling fin
