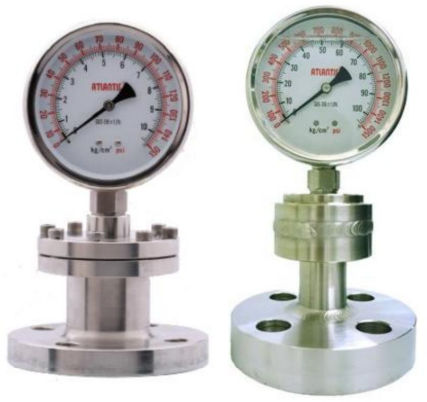

Đồng hồ áp suất

Đồng hồ áp suất :

APPLICATIONS
 Measure all liquid and gas process media
compatible with stainless steel.
The  glycerin  /  silicon  oil  filled  type  is
especially  used  for  measuring  points  in
vibrational  and  highly  dynamic  pressure
load. Particularly used in chemical,
petrochemical, food industry, biochemistry
and any rush industries.
 SPECIFICATIONS
SPECIFICATIONS
Dial Diameter 1½‖ (40mm)；2‖ (50mm)；2½‖ (63mm)；3‖ (75mm)；4‖ (100mm)；6‖ (150mm)
8‖ (200mm)；10‖ (250mm)
Case : Stainless steel 304, IP65
Crimp bezel for dial Φ1½‖ ~ 4‖；Bayonet bezel for dial Φ2½‖ ~ 10‖
Lens  Acrylic or glass for dial Φ1½‖ ~ 4‖  ；Safety glass for dial Φ 4‖ ~ 10‖
Dial  Aluminum, black and red markings on white background, dial arc 270°
Measuring Principle Bourdon Tube, stainless steel 316 C form tube for ≦ 70 kg/cm2
；Helical form tube for  ＞70 kg/cm2
Movement  Stainless steel Pointer  Aluminum, black, adjustable pointer available for dial Φ 4‖ ~ 10‖
Connection  Male thread 1/8‖, 1/4‖, 3/8‖, 1/2‖ PT(BSPT) / NPT / PF(BSP), stainless steel 316
Filling  Without (dry)；glycerin filled；silicon oil filled
Accuracy  ±2% F.S. for Φ1½‖ & 2‖  ；  ±1.5% F.S. for Φ2‖ ~ 3‖  ；  ±1% F.S. for Φ3‖ ~ 10‖
Temperature Limit Dry：medium +100℃；ambient -20 to +60℃
Glycerin filled：medium +100℃；ambient +10 to +60℃
Silicon oil filled：medium +100℃；ambient -45 to +60℃
＜Silicon oil filled type can be for medium +200℃only if the case and connection
are welded together (argon-arc welding), available forΦ2½‖ ~ 10‖.＞
Pressure Range positive 0 / 1 ~ 0 / 1000 kg/cm2
negative 0 / -76 cmHg (relative vacuum) compound -76cmHg / 0 / 1 ~ -76cmHg / 0 / 20 kg/cm2
＜other units available, e.g. psi, bar, MPa…etc.＞
OPTIONS
- Safety glass lens for dial Φ2-1/2‖ & 3‖
- Blow-out disk by back for dial Φ4‖~10‖
- Special male or female thread connections
- Cleanness for oxygen, acetylene, hydrogen…etc. dangerous media service
- Restrictor on connection to alleviate pressure pulsation
- Device of red pointer which can leave behind on max. pressure
- Device of diaphragm, electrical contacts or accessories
