Đồng hồ áp suất EXPLOSION PROOF PRESSURE GAUGE

Đồng hồ áp suất :

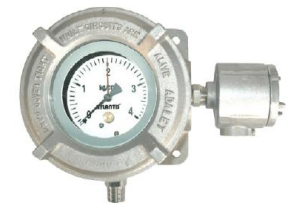

6” EXPLOSION PROOF PRESSURE GAUGE with Micro Switch
AT-5000X series
FEATURES
- Class I , Groups A,B,C,D; Class II, Groups E,F,G; NEMA 4X MICRO SWITCH
- Measuring Range: 0~400kg/cm² ; 0.1MPa~40MPa available

- Dial Diameter  6‖ (150mm

- Material  Bourdon Tube SS316, Wetted parts SS316

Housing Die Cast aluminum alloy
Process connection: 3/8, 1/2 NPT (other size and material are available)
Electrical Connection: 1/2NPT (other size and material are available)
Accuracy ±1.0% F.S.
Pressure limit Over range protected 130% of full scale range
Switch form One Setting point: SPDT1 or two setting points: SPDT2 available
Set point Full scale range available
Switch dead band ±2.0% of full scale
Pressure Range 0.1MPa~40MPa, 0~400kg/cm²
