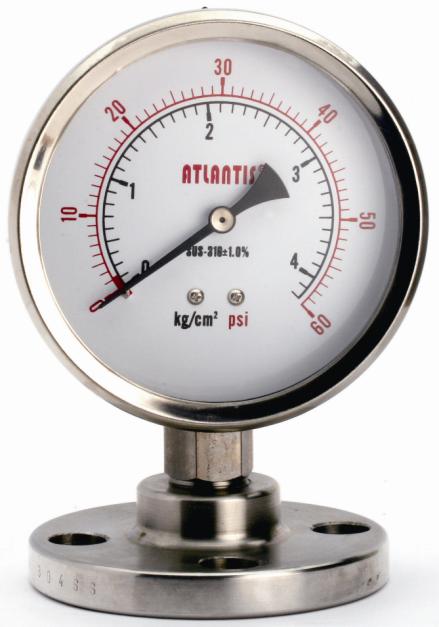

Đồng hồ đo áp suất dạng màng

Đồng hồ áp suất :

SPECIFICATIONS

Instruments All series pressure gauges and pressure transmitters are available
Process
Connection
(Flange)
JIS 10K－1/2”；3/4”；1”；1-1/4”；1-1/2”；2” (FF standard ; RF optional)
ANSI 150LB－1/2”；3/4”；1”；1-1/4”；1-1/2”；2” (RF standard ; FF optional)
DIN、EN 10Bar－15；20；25；32；40；50；80；100
GB/T 1.0Mpa－15；20；25；32；40；50；80；100
＜Other flange sizes are available upon request＞
Flange Material SUS304；SUS316；SUS316L
Diaphragm Standard：SUS316L
Option：Nickel, Teflon (PTFE), Hastelloy C, Monel, Tantalum, Titanium
Coating (option) Teflon；PFA
Lining (option) Teflon；PFA；PVDF
Temperature medium +80℃；ambient 10 to 60℃
for medium 80~400℃ or ambient below 10℃ available made-to-order
Filling Fluid Glycerin or silicon oil standard＜depends on temperature＞, fluorocarbon oil available
Pressure Range positive 0 / 2.5 ~ 0 / 60 kg/cm2 (bar), negative or compound not available
＜max. pressure for teflon diaphragm is 10 kg/cm2 (bar)＞
Accessory
(option)
Cooling fin
Capillary for remote measurement (specify length of capillary when ordering)
