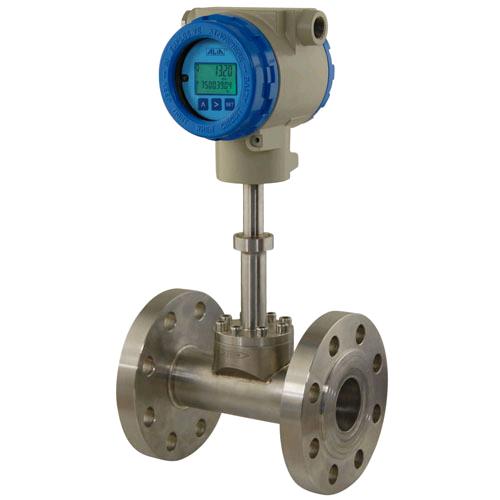

- Đồng hồ đo lưu lượng khí thải
- Giá:Liên hệ
- Xuất xứ:
- Lượt xem:33607
| FEATURES |
Measure low velocity less than 0.1 m/s Measure high-temp., low-press. and low-velocity flare gas. 4-20 mA output Hart communication Low Pressure drop The Max. temperature can be up to 450 ¡ãC Online calibration by Alia unique software Insertion Type or Hot-Tap Type available for large pipeline
SPECIFICATION
| Size: | Local Display: |
| 15, 20, 25, 32, 40, 50, 65, 80, 100, 125, | 4 lines LCD (with backlight) |
| 150, 200, 250, 300¡¡6000(mm) | 5 digit flowrate |
| Measuring Range: | 8 digit Totalizer |
| Steam: 0.002 ~ 3400000 Ton/Hr | Current Output: |
| Gas: 1 ~ 3280000 NM3/Hr | 4-20 mA 2 wire |
| Liquid:0.1 ~ 55800 M3/Hr | Load |
| Material: | Rohm=(Vdc-10)*50 |
| Stainless Steel 304 / 316 | Alarm Function: |
| Accuracy: | High / Low Alarm |
| Wafer / Flange Type | Turndown Ratio: |
| +/-0.75% of reading | 15:1 |
| Insertion Type | Communication: |
| +/-1.6% of reading | Hart signal |
| Repeatability: | Data Storage: |
| +/-0.05%FS | Operation parameters and totalizer |
| Multi Flow Range : | figures are stored by EEPROM for more |
| 1- 3 flow range | than 10 years |
| Process Connection: | Housing Material: |
| Flange / Wafer / Insertion | Aluminum Alloy |
| Flanges Type: | Cable Entry: |
| JIS 10K / JIS 20K / JIS 40K | Standard :M20 Option:1/2"NPTF |
| ANSI 150# / ANSI 300# / ANSI 600# | Power Supply: |
| PN 10 / PN 16 / PN25 / PN 40 | 10-32 VDC |
| Ambient Temperature: | Power Effect: |
| -25 to +70 oC | <=0.01% / V |
| Temperature Effect: | Keyboard: |
| <=+/-1% per 50 oC | 3 internal keys for programming |
| Max. Pressure: | and display control |
| 100 Bar | Low Flow Cutoff: |
| Working Temperature: | 0 to 20% |
| Flange / Wafer | Damping: |
| -60 to 450 oC | 0 to 32 seconds |
| Insertion | Protection Class: |
| -60 to 450 oC | IP 67 |
| Hot Tap (Retractable) | Explosion Proof, Exd IIC T6 |
| -20 to 80 oC | Intrinsically Safe, E ex ia IIC T4 |
