Loose disc needle valves
Giá:
Liên hệ
Xuất xứ:
Tây Ban Nha
Lượt xem:
949

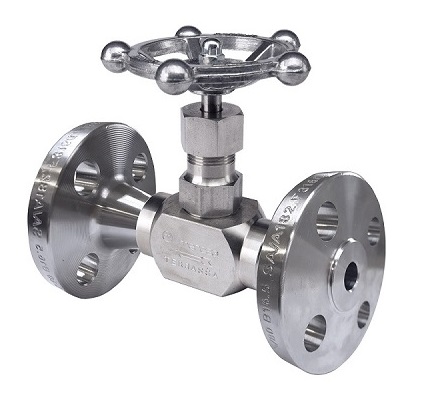

Loose disc needle valves AM® Series: A06, A11, A12, A16, A21 - Valves with spindle holder bonnet and a bulilt-in sealing system, also a BACK SEAT, allowing changing of packing when the valves is under pressure. - Manufacturing series: SERIE A06, integral seat. SERIES A11, with outlet drain. SERIES A12, rechangeable seat. SERIES A16, 90º angle valve. SERIES A21, flanged.

CHARACTERISTICS

- ASME B31.1 design.
- Connections to various standards, from 1/4” to 1” in NPT (ASME B1.20.1), ISO 228, S.W. (Socket weld. ASME B16.11) and Flanged from 1/2" to 2".
- Manufacture materials stainless steel grade 316, carbon steel and barss.
- Graphite packing (Under order they can be supplied with PTFE packing).
- Moveable vee in stainless steel grade 316 in all versions.
- Aluminium handwheel (Under order they can be supplied with handle).
- Rating: According to material and flanges

Connections: NPT (ANSI/ASME B1.20.1), ISO 228 and S.W. (Socket Weld ASME B16.11).

Materials:

Manufacture materials Stainless steel grade 316 and Carbon steel Graphite Packing (Under order they can be supplied with PTFE packing).

Moveable vee in Stainless steel grade 316 in all versions ALUMINIUM handwheel (Under order they can be supplied with handle).

Sealing built in the inferior part of the stem allows to change the packing, being the valve under pressure service.

Rating:

Maximum temperature of PTFE 500°F (260°C).

Max. pressure 3705 PSI (255 BAR).
