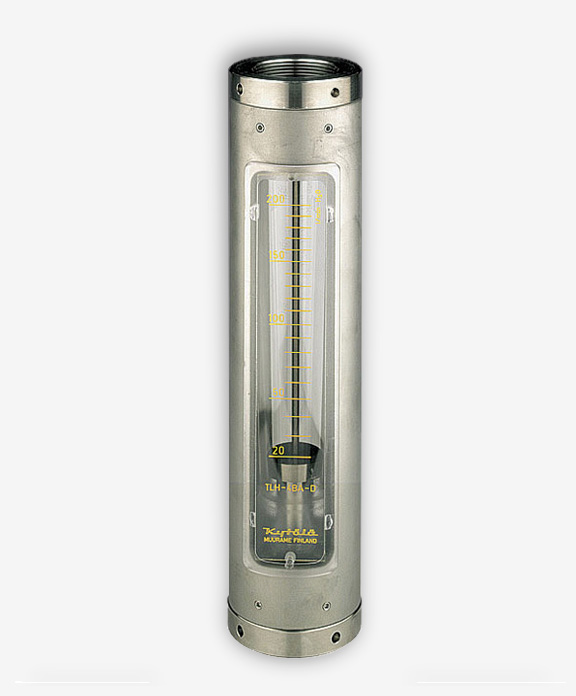

Lưu lượng kế dạng phao Model TL
Giá:
Liên hệ
Xuất xứ:
Finland
Lượt xem:
4047

Flow range (min./max.): Water: 7.5 / 400 L/min Air: 300 / 12000 NL/min at +20C / 101,3 kPa The KYTOLA® Variable Area Flow Meter Model TL is a sturdy industrial ﬂow meter. Model TL is a reliable instrument for measuring and monitoring large liquid and gas ﬂows. It has a stainless steel AISI 316 or aluminium body with a heavyduty impact resistant polymer ﬂow tube.

Overview

Variable area flow meter Model TL is a sturdy industrial flow meter. It has a stainless steel AISI 316 or aluminium body with a heavy-duty impact resistant polymer flow tube. It is a reliable instrument for measuring and monitoring liquid and gas flows. Typical applications are sealing water measurement for vacuum pumps, lubrication oil measurement for gear boxes, flush water applications and gas flow measurements.

Technical Data
	TLA	TLH	TLFH
Connections	BSP 2" / NPT 2"	BSP 2" / NPT 2"	DN 50 / ANSI 2"
Max. pressure	20 bar	20 bar	16 bar
Max. temperature	80°C (*120°C)	80°C (*120°C)	80°C (*120°C)
Weight	3.3 kg	4.5 kg	6.6 kg
Connectors	Aluminium	AISI 316	AISI 316
Body	AISI 316	AISI 316	AISI 316
Flowtube	Grilamid (PA-12) (*PES)	Grilamid (PA-12) (*PES)	Grilamid (PA-12) (*PES)
Float	AISI 329 or PTFE (depending on range)	AISI 329 or PTFE (depending on range)	AISI 329 or PTFE (depending on range)
Seals	Nitrile (* Viton®, EPDM)	Nitrile (* Viton®, EPDM)	Nitrile (* Viton®, EPDM)
Accuracy	±5% F.S. (H2O, +20°C)	±5% F.S. (H2O, +20°C)	±5% F.S. (H2O, +20°C)
*Alarm sensor (+ sensor holder)	ZILPTLD34FB (20 - 250 VAC/DC, 2-wire, NO/NC)  ZILPTLD34FR (10 - 55 VDC, 2-wire, NO/NC)
*) Special construction on request
