MF TIPO MANIFOLD

MC series: Manifolds 420-430 BAR
This family of Manifolds of standard design is one of our series of manifolds most requested by our customers. They generally stand out for their range of pressures due to the assembly of MC-type valves, with benefits that allow a service of up to 430 bar (6250 psi).

Rating:
- SS 316/L: 420 BAR (6000 PSI)
- CARBON STEEL: 425 BAR (6170 PSI)
- SS 904L: 425 BAR (6200 PSI)
- DUPLEX: 430 BAR (6250 PSI)
- SUPERDUPLEX: 430 BAR (6250 PSI)

Maximum temperature: 350ºC / 662ºF
Orifice: 3.75 (0.15 in)
Stem tip: Ball, Needle
Standard Construction material: INOX 316 / A.C.
(For other materials see catalog "Special Materials")
Packing: PTFE or Graphite
Non-rotating valve: Elastic pin
Design standard: ASME B31.1

1 way 2 valves, threaded connections, valve type (Ref. MCZ)

2 valve manifolds, one in line with 1/2 "NPT inlet and outlet and one discharge with 1/4" NPT female outlet.

Standard model:

Female x Female (Ref. MCZ ): Process Connection H.1 / 2 "NPT, Instrument Connection H.1 / 2" NPT and Purge H.1 / 4 "NPT

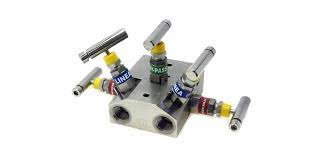

(The photograph belongs to this configuration)

Additional models:
Male x Male (Ref. MCM ): Process Connection M.1 / 2 "NPT, Instrument Connection M.1 / 2" NPT and Drain H.1 / 4 "NPT
Male x Female (Ref. MC1 ): Process Connection M.1 / 2 "NPT, Instrument Connection H.1 / 2" NPT and Drain H.1 / 4 "NPT
Female x Male (Ref. MCH ): Process Connection H.1 / 2 "NPT, Instrument Connection M.1 / 2" NPT and Drain H.1 / 4 "NPT
