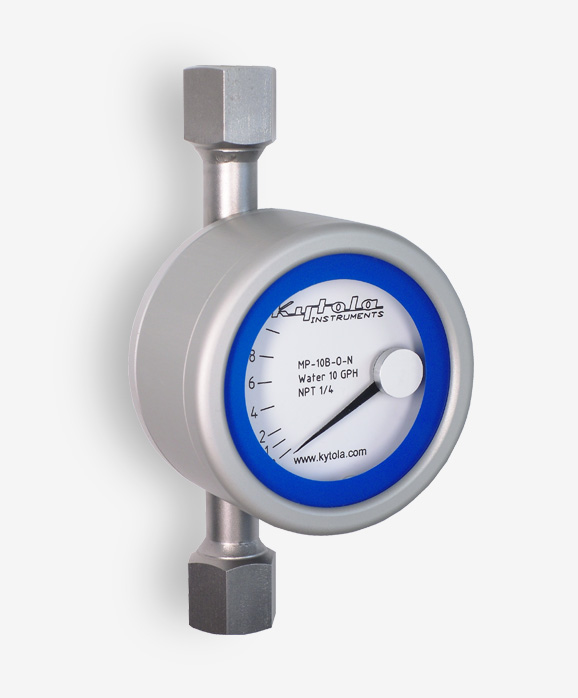

Metal tube flow meter MP-O
Giá:
Liên hệ
Xuất xứ:
Finland
Lượt xem:
5496

Flow range (min./max.): Water: 0.015 / 6.5 L/min Air: 0.5 / 200 NL/min at +20C / 101,3 kPa

Overview

Metal Tube flow meter model MP is a compact flow meter with AISI 316L stainless steel parts. It is designed to withstand high pressure, temperature and aggressive media. It is compatible for a wide range of liquids or gases. Its reliable and accurate flow measurement is based on a variable area metering principle using a free-floating float. Typical applications are chemical and petrochemical industries, power plants and general flow measurements.

Technical data
Flow tube	Stainless Steel AISI 316L
Connectors	Stainless Steel AISI 316L
Float	Stainless Steel AISI 316L
Display housing	Aluminium (*Stainless Steel AISI 316L)
Housing window	Polycarbonate (*Borosilicate glass)
Maximum pressure	235 bar
Maximum temperature	+100°C with alarms / +150°C without alarms
Connections	BSP / NPT / BSPT 1/4" or 1/2" (depending on range)
Weight	700g
*) Special construction on request
