PRESSURE DAMPER
Giá:
Liên hệ
Xuất xứ:
Tây Ban Nha
Lượt xem:
1343

MAX. PRESSURE OF UP TO 5.140 PSI (360 BAR) RATING: STAINLESS STEEL Graphite packing 5000 PSI from -20°F to 100°F 3053 PSI to 662°F Maximum STAINLESS STEEL PTFE packing 5000 PSI from -20°F to 100°F Maximum service temperature of PTFE 446°F CARBON STEEL Graphite packing 5140 PSI from -20°F to 100°F 4200 PSI to 482°F Maximum

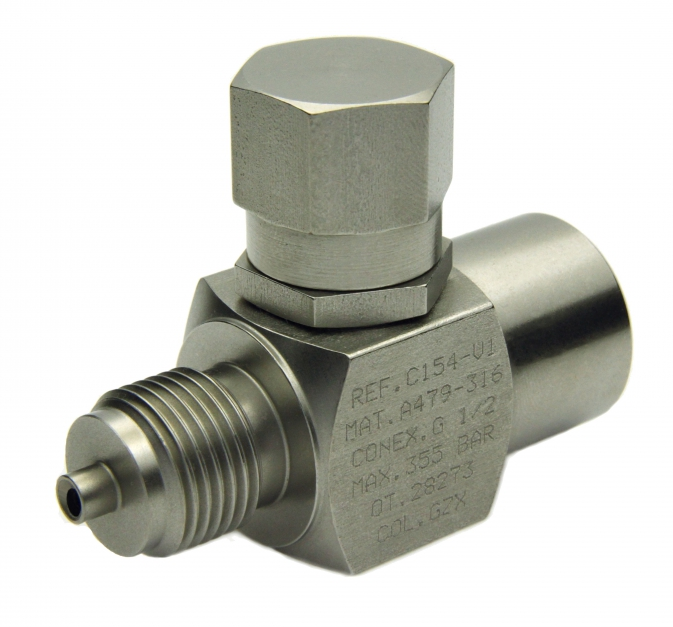

PRESSURE DAMPER
MAX. PRESSURE OF UP TO 5.140 PSI (360 BAR)

CHARACTERISTICS:

RATING:

STAINLESS STEEL Graphite packing
5000 PSI from -20°F to 100°F
3053 PSI to 662°F Maximum

STAINLESS STEEL PTFE packing
5000 PSI from -20°F to 100°F
Maximum service temperature of PTFE 446°F

CARBON STEEL Graphite packing
5140 PSI from -20°F to 100°F
4200 PSI to 482°F Maximum

CARBON STEEL PTFE packing
5140 PSI from -20°F to 100°F
Maximum service temperature of PTFE 446°F

Connections: NPT (ANSI/ASME B1.20.1), ISO 228 and MEGALOK compression tube ends.

Materials:
Manufacture materials STAINLESS STEEL Grade 316 and CARBON STEEL.
Stem of STAINLESS STEEL Grade 316 in all the versions.
