Thiết bị đo mức level gauge chất lượng

Product description

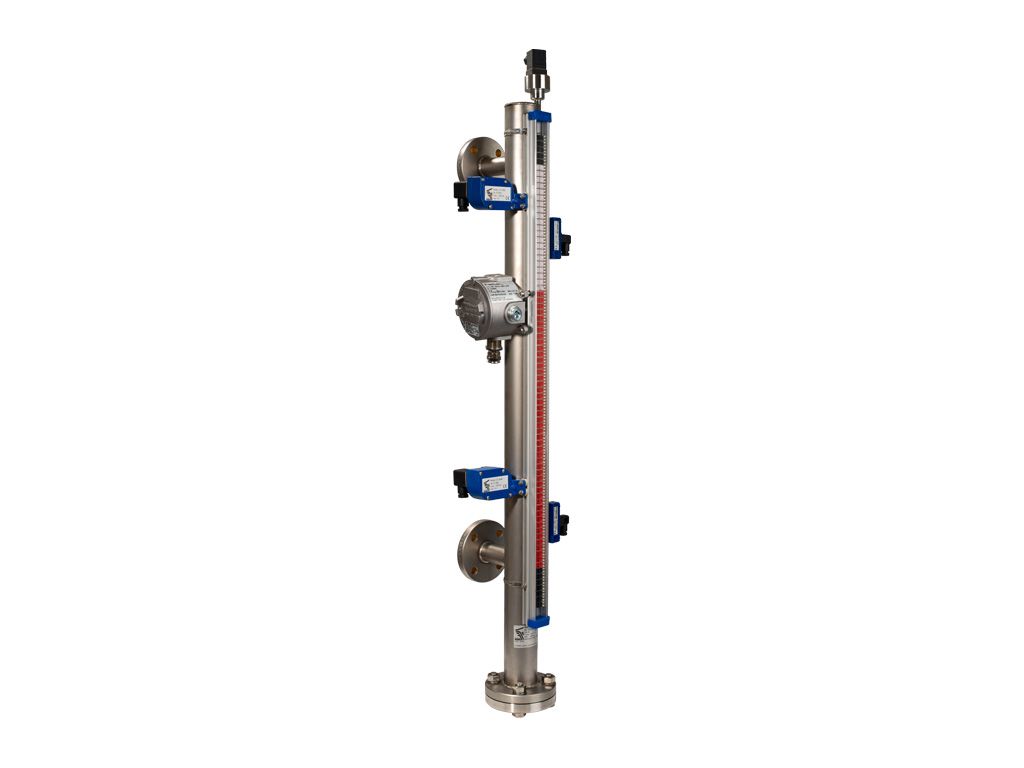

Indicator/Transmitter for liquid level of simple construction, suitable for high pressure and temperature conditions.
The level indication by magnetic transmission between the internal float magnet and the external indicator system ensures a complete sealing system with no possibility of leakage. Possibility of adjusting contact switches to the full scale. Excellent chemical and mechanical resistance.

Technical specifications
Local indication
Length
0,3 … 15 m (depending on manufacturing material)
Accuracy
±3 … 4 mm
Connections
DIN DN25 flanges
Thread fittings G1”/ 1”NPT
Others flanges and connections on request
By-pass mounted
Materials
EN 1.4404 (AISI 316L), PVC, PP, PVDF, PTFE
Options
Adjustable limit switches
4-20 mA analog output, Ex version on demand
HART ™ , Profibus or Fieldbus protocols on demand
