Total Organic Carbon Monitor
Giá:
Liên hệ
Xuất xứ:
Lượt xem:
6990

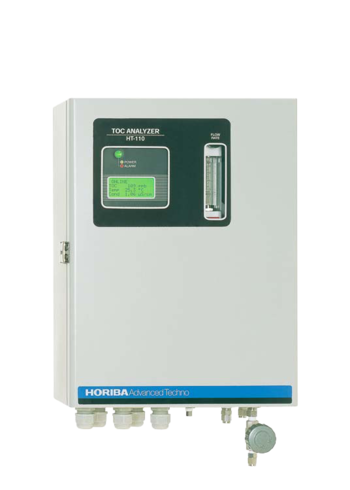

The continuous online TOC-Analyzer HT-110 is suitable for the measurement ot total organic carbons in Purified Water (PW), Water For Injection (WFI) and Highly Purified Water (HPW). The unit is operating according to USP 643. It is applicable for pharmaceutical and/or semiconductor manufacturing. The measuring principle is based on UV-Oxidation and measurement of the difference in conductivity. TOC concentration measurement (TOC concentration 500 ppbC or lower) is necessary to perform quality control according to GMP (Good Manufacturing Practice)

Product name		Total organic carbon analyzer (TOC analyzer)
Model		HT-110
Measurement method		Continuous UV oxidation conductivity method
Measurement limit		0 ppb to 1000 ppb
Measurement range		0 ppb to 100/500/1000 ppb
Repeatability		Within ±2% of full scale
Display resolution		0.1 ppb (0 ppb to 100 ppb/0 ppb to 500 ppb range) 1 ppb (0 ppb to 1000 ppb range)
Transmission output		Number of output point: one 4 mA to 20 mA DC/0 V to 1 V DC (optional) insulated input/output Maximum load resistance: 600 Ω (minimum load resistance 100 kΩ (when optionally selected)) Transmission output range: optional setting possible within measurement range Output target: TOC concentration
Contact output		Number of outputs: 2 Alarm contact output (RLY1) Contact method: relay contact, SPDT (1c) Contact capacity: 125 V 3 A AC/24 V 3 A DC (load resistance) Contact function: upper/lower limit function (ON/OFF control) Output target: at TOC, temperature, conductivity: C-NO contact is “closed” during operation, “open” during normal conditions (including a POWER OFF state) C-NO contact is reversed at hold, or error: C-NO contact is “open” during operation (including a POWER OFF state), “closed” during normal conditions C-NO contact is reversed
Contact output		Alarm contact output (RLY2) Contact method: relay contact, SPST (1a) Contact capacity: 125 V 3 A AC/24 V 3 A DC (load resistance) Contact function: upper/lower limit function (ON/OFF control) Output target: TOC concentration
Contact input		Number of input point: 1 Non-voltage normal open (1a) signal input (open collector input possible) Insulation-type input Max. ON resistance: 50 Ω Open-circuit voltage: 5 V DC Max. short circuit current: 10 mA An error will not be generated even if there is notification of no sample detection immediately after receipt of the pure water device stop signal receiving The hold operation during the contact input receiving.
Sample water condition		Conductivity: less than 10 μS/cm (less than 2 μS/cm in 0 ppb to 100 ppb range)
		Temperature: 5℃ to 99℃
		Pressure: 0.03 MPa to 0.50 MPa, Pressure fluctuation: within ±0.05 MPa (within the specified pressure range)
		Flow rate: 20 mL/min to 200 mL/min
Environmental conditions		Temperature: 5℃ to 40℃
Environmental conditions		Relative humidity: less than 85%
Installation		Install place: indoor
Display function		LCD (with a back light) TOC, conductivity, water temperature, alarm
Power		100 V to 240 V AC ±10%, 50 Hz/60 Hz built-in fuse 250 V AC 3.15 A (T)
Power consumption		80 VA (max.)
Outside dimension		300 (W) × 400 (H) × 165 (D) mm
Mass		13 kg
Concerned directives	CE marking	EMC Directive: EN61326-2-3 Low Voltage Directive: EN61010-1 RoHS Directive: EN50581
Concerned directives	FCC Rule	FCC parts 15
Protection structure		IP 43 (IEC60529, JIS C0920) Pollution level 2 (IEC61010-1)
